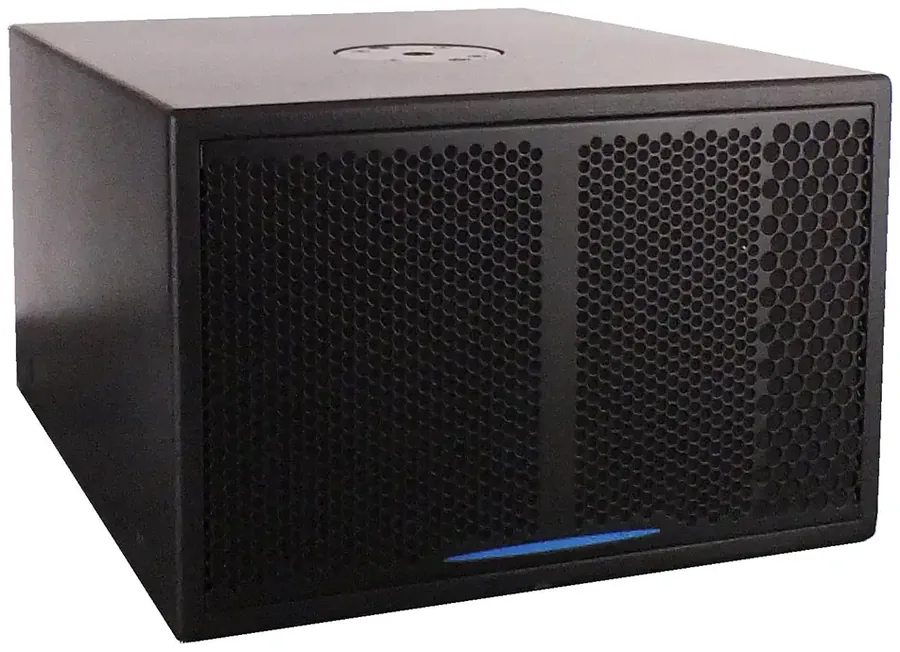

| TECHNICAL DATA Frequency band of use (± 10 dB) 45 Hz - 150 Hz SPL max at 1m 132 dB SPL (1) Nominal directionality (H° x V°) Omnidirectional (2) Nominal impedance 8 ohms Transducers Source topology Acoustic load Amplification channels and sections 1 x 12" Neodymium - Bass Reflex 1 channel, mono-amplified AES power (W) Maximum permissible power (W) 800 W (3) 3200 W (4) Dimensions H,W,D (mm) Weight (kg) Connectors IP 325 x 525 x 610 mm 24.1 kg 2 x Speakon NL4MP (5) 43 iS112/iS112-O The iS112 is a compact subwoofer for mobile applications and small-scale fixed installations. It is equipped with a 12" loudspeaker. Also available in an outdoor version, iS112-O. The "iS112 subwoofer has been designed for bass reinforcement in small and medium power systems where compactness and discretion are essential. where compactness and discretion are essential. imperative. In fixed installation, its small dimensions make it easy to fit into space, under small stages, platforms or even benches. or even benches. The sound reproduction is characterised by precise bass from from 45Hz, resulting in a beautiful sonic impact and a great deal of musicality in the bass. bass. The iS112 combines perfectly with iX and DX loudspeakers to create effective front-of-house systems in small concert venues, bars and small clubs, conference rooms. The iS112 will be appreciated by mobile systems in for its compactness and portability, especially for corporate events. corporate events. This subwoofer is also suitable for distributed sound systems in installation. The sound impact and dynamics of the iS112 make it ideal for drum and bass applications. for drum fill applications on small stages. For maximum performance and protection, the iS112 must be used exclusively with a used exclusively with an APG processor and amplifier. BARS CLUBS CONCERT HALLS CONFERENCE ROOMS ACCESSORIES & OPTIONS iS112BH Attachment bumper for iS112 ELECTRONICS |
리깅 툴 · 액세서리1
iS112/iS112-O 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
기술자료17
제조사 공식 문서입니다. 종류별로 묶었습니다.
사양서 · 제품 정보3
메뉴얼 · 가이드4
도면 · CAD · BIM4
제품 이미지1
- zip제품 이미지다운로드
