The Sound. The Shape. The Future.
16-channel PULS for medium and large size events
155 dB최대 SPL
45 Hz – 20 kHz대역폭
70° / 90° / 110° · Panflex수평 커버리지
158 kg무게
PROGRESSIVE ULTRA-DENSE LINE SOURCEINTEGRATED CARDIOIDL-VENTSDOSCPANFLEX
PERFECTION
Line source technology perfected with PULS
ULTRA-DENSE
Best in class SPL/m, SPL/kg, SPL/m2
ULTRA-CONTROL
Clean stage and neighbouring area with Integrated Cardioid
ULTRA-EFFICIENT
Fast and errorless deployment
| max spl | 155 dB |
|---|---|
| weight | 158 kg / 348 lb |
| bandwidth | 45 Hz- 20 kHz |
| horizontal coverage | V: 10° H: Four modules Panflex:70° / 90° / 110° Integrated cardioid |
| components product | LC: 4 x 12" LF: 8 × 10’’ HF: 8 × 3’’ |
| 구성 | 16-channel active progressive curvature WST® amplified by LA7.16/LA7.16i |
|---|---|
| 사용 대역 | 45 Hz - 20 kHz ([L2 70]) |
| 최대 음압 | Full element: 155 dB ([L2 70] First module: 147 dB ([L2 70]) |
| 공칭 지향각 | vertical: 10° progressive directivity horizontal: Four modules: Panflex 70° / 90° / 110° Integrated cardioid |
| 드라이버 | LC: 4 × 12’’ neodymium cone drivers LF: 8 × 10’’ neodymium cone drivers HF: 8 × 3’’ neodymium compression drivers |
| 음향 부하 | LC/LF: Bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
| 공칭 임피던스 | LC : 8 Ω LF : 8 Ω HF : 8 Ω |
| 커넥터 | 1 x 37-point male connector (32 points used) |
|---|---|
| 리깅·취급 | flush-fitting 4-point captive rigging system compatible with L2D |
| 치수 | 850 mm (33.5 in) / 1197 mm (47.2 in) / 559 mm (22 in) |
| 무게(본체) | 158 kg / 348 lb |
| 인클로저 | premium grade Baltic birch plywood |
| 전면 | coated steel grill acoustically neutral 3D fabric |
| 리깅 부품 | high grade steel with anti-corrosion coating |
| 마감 | dark grey brown Pantone 426 C |
| IP 등급 | IP55 |
리깅 툴 · 액세서리10
L2 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
L2-BARExtension bar for L2-BUMP
L2-BUMPFlying frame for L2 and L2D
L2-BUMPFLIGHTModular flight case for 1 L2-BUMP and rigging elements
L2-BUMPFLIGHTADDLAYERL2-BUMPFLIGHT extension for one additional L2-BUMP

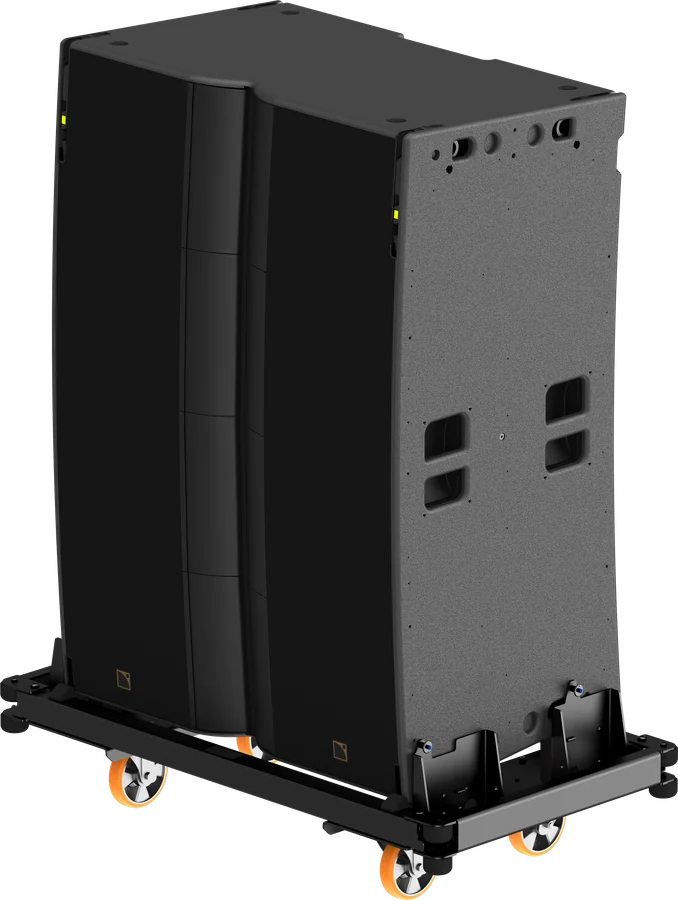

L2-CHARIOTChariot for one L2
L2-CHARIOTCOVProtective cover for 1 L2 on L2-CHARIOT
L2-CHARIOTLIDProtective lid for L2
L2-LASERMOUNTLasermount for L2 and L2D (compatible TEQSAS / SSE Prosight / Align Array / KSG)
L2-RIGBARRigging bar and pullback for L2 and L2D
L2-ROLLLift and roll accessory for L2 and L2D (to be used with L2-RIGBAR)기술자료10
