| 구조 | 48 channels of amplification |
|---|---|
| 출력 | Up to 62,400 W at 8 ohms |
| 전원 | Three-phase 32 A IEC in/link 30 A NEMA for 110 V |
| 입력 | Milan-AVB, AES/EBU, Analog |
| 구조 | 48 channels of amplification |
|---|---|
| 출력 | Up to 62,400 W at 8 ohms |
| 전원 | Three-phase 32 A IEC in/link 30 A NEMA for 110 V |
| 입력 | Milan-AVB, AES/EBU, Analog |
| 네트워크 | Milan-certified with seamless network redundancy |

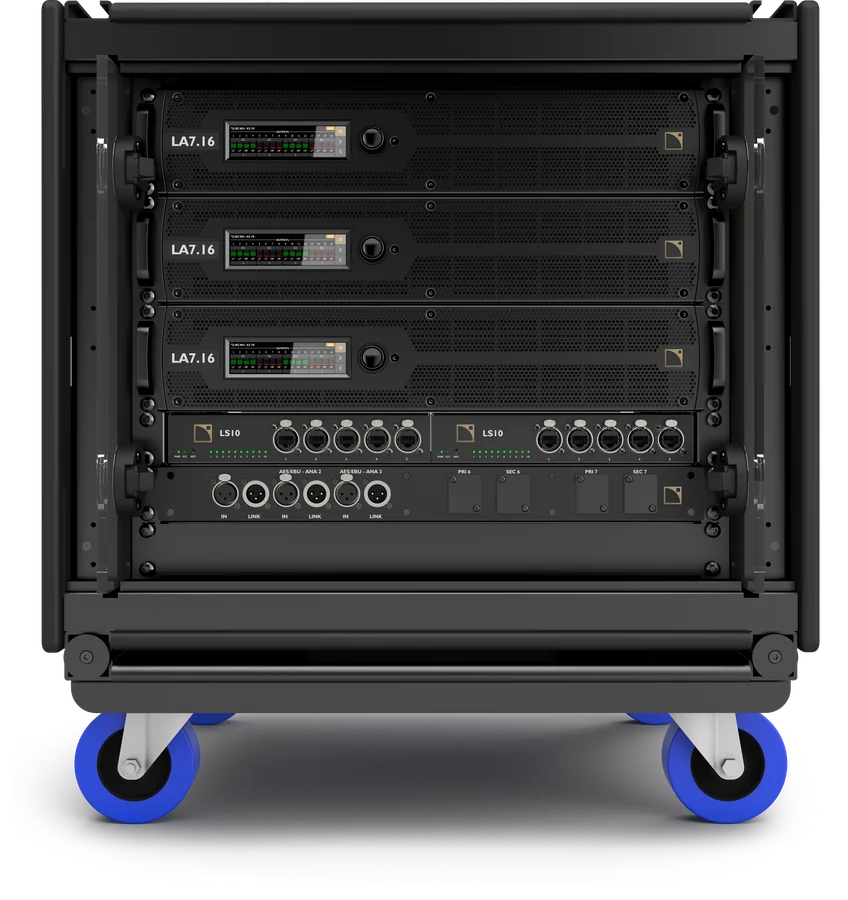

| 증폭 | 3 LA7.16 Amplified controllers |
|---|---|
| 네트워크 | 2 LS10 AVB switches |
| 분배 | 1 LA-PANEL III for audio distribution 1 LA-POWER II for power distribution |
| 기타 | 2 doors, cables and 2 coupling bars |
| 아날로그 입력/링크 | 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) (Shared with AES/EBU) |
|---|---|
| AES/EBU | 3 x female Neutrik® XLR3 (IN) / 3 x male Neutrik® XLR3 (LINK) (Shared with Analog) |
| 아날로그 입력/링크(후면) | 3 x 12-point termial block connectors (Shared with AES/EBU) |
| AES/EBU(후면) | 3 x 12-point termial block connectors (Shared with Analog) |

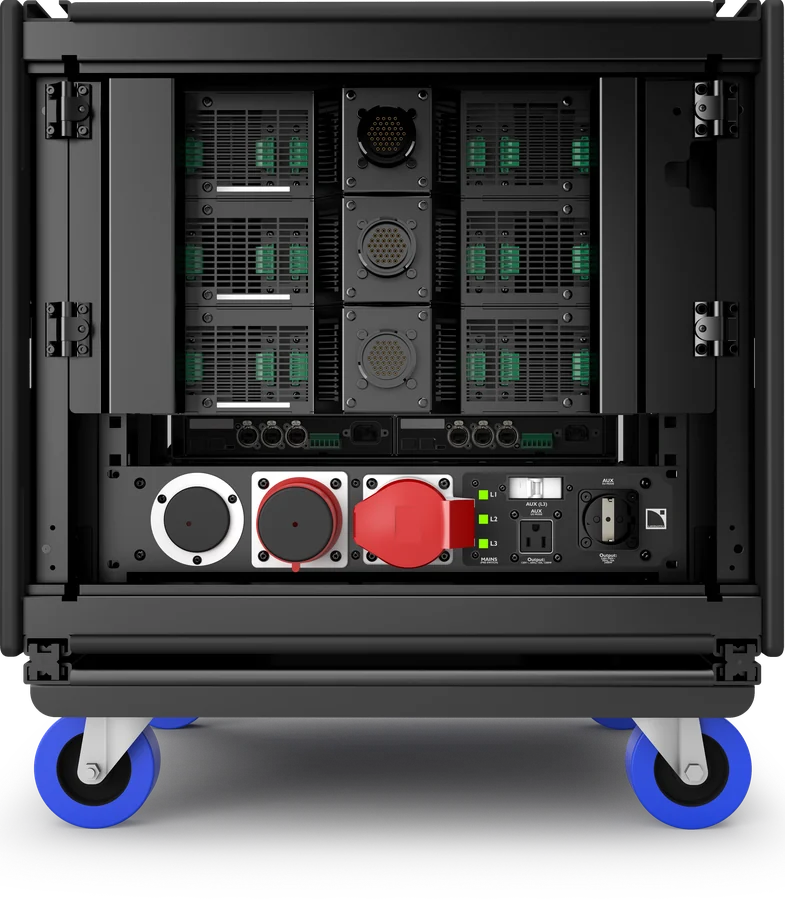

| AC 입력(US) | 30 A - NEMA L21-30P (3P+N+E) male outlet |
|---|---|
| AC 입력/링크 출력(EU) | 32 A - IEC 60309 (3P+N+E) male outlet 32 A - IEC 60309 (3P+N+E) female outlet |
| AC 유무 | 3 x dual LEDs: Left: US AC input / right: EU AC input |
| AC 보조 출력(US) | NEMA 5-15 female outlet (AUX US MODE) |
| AC 보조 출력(EU) | Type F «Schuko» female outlet (AUX EU MODE) |
| 보호 | 10 A type C circuit breaker (AUX L3) |
| LA12X용 AC 출력(후면) | 3 x power cords fitted with 32 A Neutrik powerCON® connectors (AMP 1 L1, AMP 2 L2, AMP 3 L3) |
| AC 입력 선택 스위치(후면) | Switch between EU MODE and US MODE |
| LS10용 AC 출력(후면) | 2 x IEC 60320-1 type C13 female outlets (AUX L3) |
| 아날로그 | 3 ANALOG OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft 3 ANALOG XLR3 male/female labeled cables, 0.55 m / 1.8 ft |
|---|---|
| AES/EBU | 3 AES3 OUT XLR3 male/female labeled cables, 1.10 m / 3.61 ft 3 AES3 LINK XLR3 male/female labeled cables, 1.10 m / 3.61 ft 2 AES3 XLR3 male/female labeled cables, 0.55 m / 1.8 ft |
| 네트워크 | 3 CAT7 red Ethernet labeled cables, 1 m / 3 ft 3 CAT7 black Ethernet labeled cables,1 m / 3 ft 2 RJ45 blockout cover for LA-PANEL II |
| 보관·운반 | 2 coupling bars 2 coupling rails 4 handles 1 dolly board |
|---|
| 무게 | 117.5 kg / 259 lb (with content) |
|---|---|
| 랙 유닛 | 9 RU |
| 재질 | Polyethylene, aluminium and steel external structure, LEXAN® polycarbonate doors |
