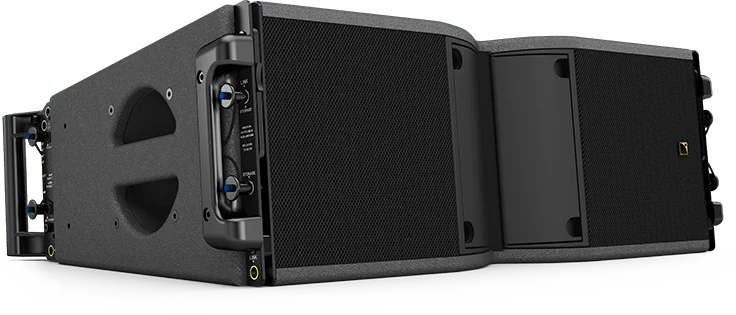

The dawn of a new KARA
2-way active, dual 8"
142 dB최대 SPL
55 Hz – 20 kHz대역폭
70° / 90° / 110°수평 커버리지
26 kg무게

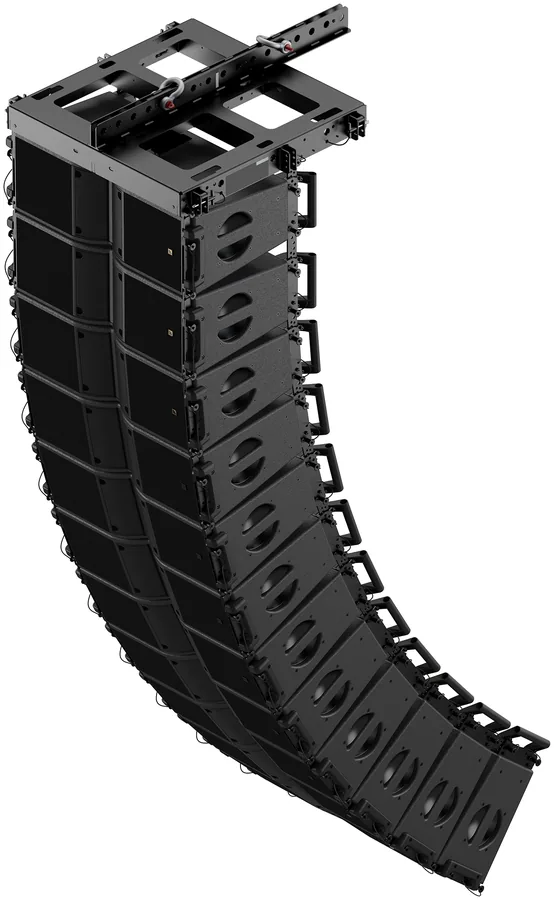

VARIABLE CURVATURE LINE SOURCEL-VENTSDOSCPANFLEX
EFFICIENT
Best-in-class SPL per weight and footprint
ADJUSTABLE
4 horizontal directivities with PANFLEX™
SHARP
Clear low-frequency power with L-VENTS™
RUGGED
Built for the road to ease transport, storage and deployment
| max spl | 142 dB |
|---|---|
| weight | 26 kg / 57 lb |
| bandwidth | 55 Hz- 20 KHz |
| horizontal coverage | H: 70° / 90° / 110° V: 10° |
| components product | LF: 2 × 8’’ HF: 1 × 3’’ |
| 구성 | 2-way active WST® enclosure amplified by LA4X / LA8 / LA12X |
|---|---|
| 사용 대역 | 55 Hz - 20 kHz ([KARA II 70]) |
| 최대 음압 | 142 dB ([KARA II 70]) |
| 공칭 지향각 | horizontal: 70° / 110° symmetric or 90° asymmetric vertical: dependent upon the number of elements and the line source curvature |
| 드라이버 | LF: 2 × 8" neodymium cone drivers HF: 1 × 3" neodymium diaphragm compression driver |
| 음향 부하 | LF: bass-reflex HF: DOSC waveguide, Panflex |
| 공칭 임피던스 | LF: 8 Ω HF: 8 Ω |
| 커넥터 | 2 × 4-point speakON |
|---|---|
| 리깅·취급 | 4-point captive rigging system 2 side handles 2 rear handles inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
| 치수 | 733 mm (28.9 in) / 252 mm (9,9 in) / 500 mm (19.7 in) |
| 무게(본체) | 26 kg / 57 lb |
| 인클로저 | premium grade Baltic birch plywood |
| 전면 | coated steel grill acoustically neutral 3D fabric |
| 리깅 부품 | high grade steel with anti-corrosion coating |
| 마감 | dark grey brown Pantone 426 C |
| IP 등급 | IP55 |
리깅 툴 · 액세서리7
KARA II 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
KARA-ANGARMEXRigging Accessories for KARA II | Concert Sound System Equipment Accessory | Include: 2 Angle Bar Extension For KARA II Bumper

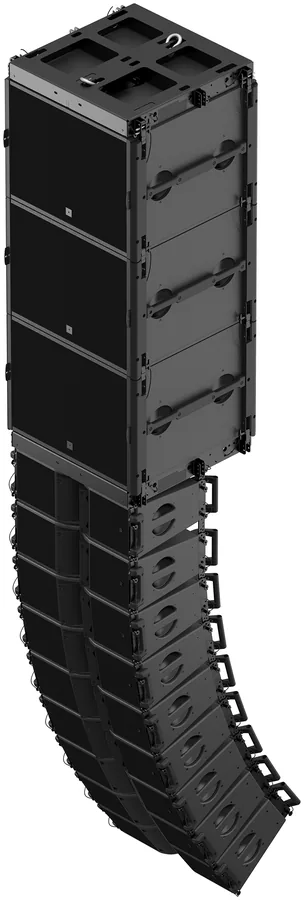

KARA-DOWNK1Interface for flying Kara (II) below K1
KARA-DOWNK3Interface for flying Kara (II) below K3
KARA-MINIBUMini bumper for flying 6 KARA (II)
KARA-MINIBUEXExtension bars for flying/stacking SB18/KARA (II)
KARA-PULLBACKPullback plate for KARA (II)
KARADOWNK2Flying bumper for rigging KARA (II) under K2기술자료12
