Full-range. Compact. No compromises.
2-way active, dual 12"
143 dB최대 SPL
42 Hz – 20 kHz대역폭
70° / 90° / 110°수평 커버리지
43 kg무게

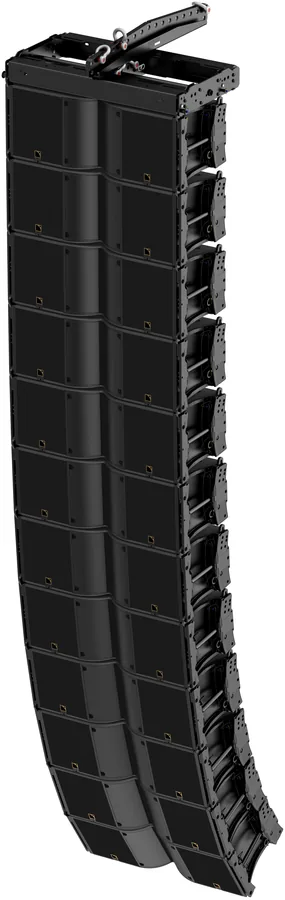

VARIABLE CURVATURE LINE SOURCEL-VENTSDOSCPANFLEX
POWERFULLY COMPACT
Large-format system performance in a compact size
ADJUSTABLE
4 horizontal directivities with PANFLEX™
SHARP
Clear low-frequency power with L-VENTS™
RUGGED
Built for the road and effortless rigging system
| max spl | 143 dB |
|---|---|
| weight | 43 kg / 95 lb |
| bandwidth | 42 Hz- 20 KHz |
| horizontal coverage | H: 70° / 90° / 110° V: 10° |
| components product | LF: 2 × 12’’ HF: 1 × 4’’ |
| 구성 | 2-way active WST® enclosure amplified by LA4X / LA8 / LA12X |
|---|---|
| 사용 대역 | 42 Hz - 20 kHz ([K3 70]) |
| 최대 음압 | 143 dB ([K3 70]) |
| 공칭 지향각 | horizontal: 70° / 110° symmetric or 90° asymmetric vertical: depending on number of elements and array curvature |
| 드라이버 | LF: 2 × 12" neodymium cone driver HF: 1 × 4" diaphragm compression driver, neodymium |
| 음향 부하 | LF: bass-reflex, L-Vents HF: DOSC waveguide, Panflex |
| 공칭 임피던스 | LF : 8 Ω HF : 8 Ω |
| 커넥터 | 2 × 4-point speakON |
|---|---|
| 리깅·취급 | flush-fitting 4-point rigging system 2 handles inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10° |
| 치수 | 950 mm (37.4 in) / 357 mm (14 in) / 403 mm (15.9 in) |
| 무게(본체) | 43 kg / 95 lb |
| 인클로저 | premium grade Baltic birch plywood |
| 전면 | coated steel grill acoustically neutral 3D fabric |
| 리깅 부품 | high grade steel with anti-corrosion coating |
| 마감 | dark grey brown Pantone 426 C |
| IP 등급 | IP55 |
리깅 툴 · 액세서리9
K3 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
BPCHAIN 1.5TExtension sling 1.5 tons
K3-BARExtension bar for K3-BUMP

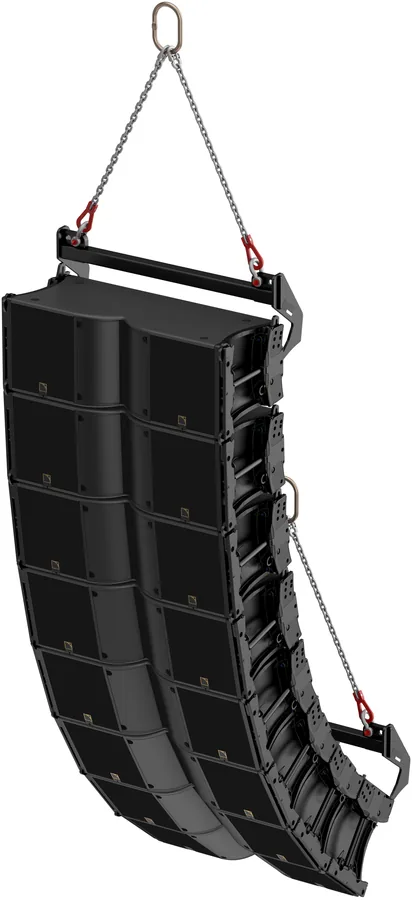

K3-BUMPFlying frame for K3 (incl. 1 BPCHAIN 1.5T)
K3-BUMPFLIGHTModular flight case for 1 K3-BUMP and rigging elements

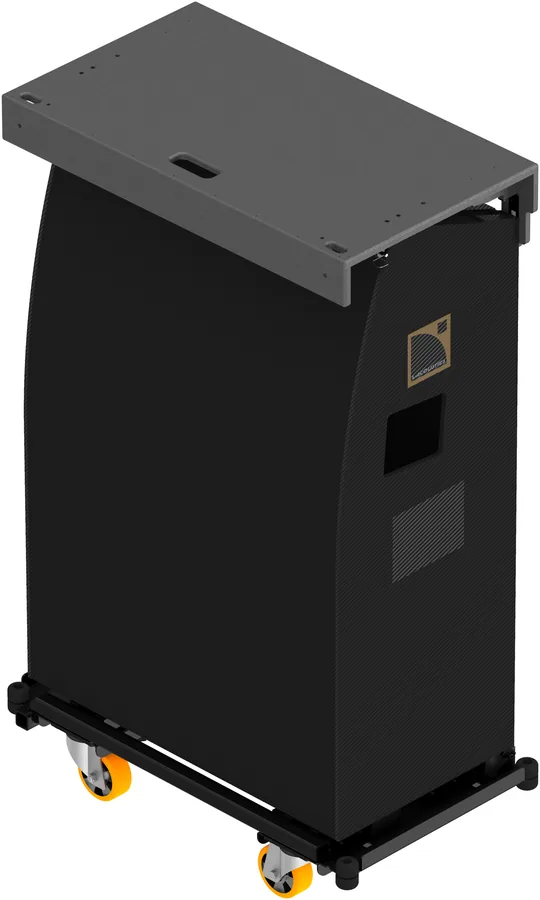

K3-CHARIOTChariot for up to 4 K3
K3-CHARIOTCOVProtective cover for 4 K3 on K3-CHARIOT
K3-CHARIOTLIDProtective lid for K3-CHARIOT
K3-RIGBARRigging bar and pullback for K3 (includes LA-SLING2T)

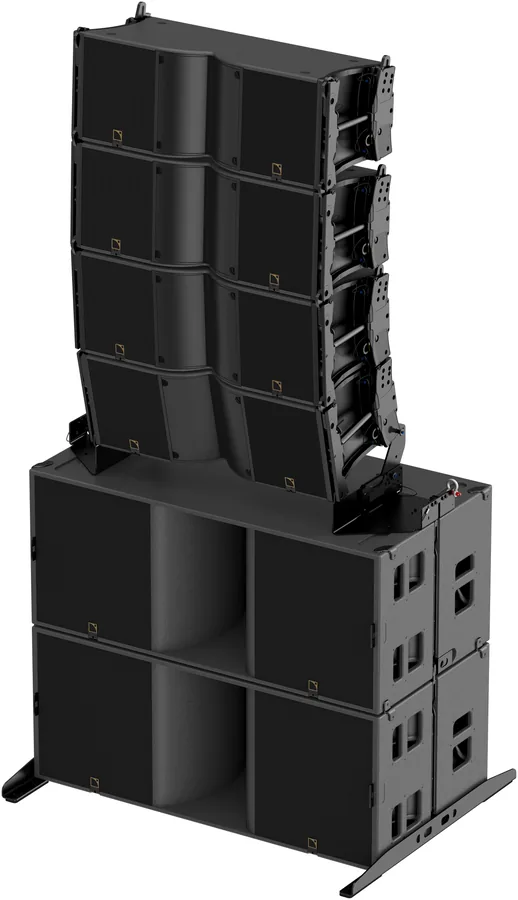

K3-TILTRigging element for stacking K3 on KS28기술자료10
