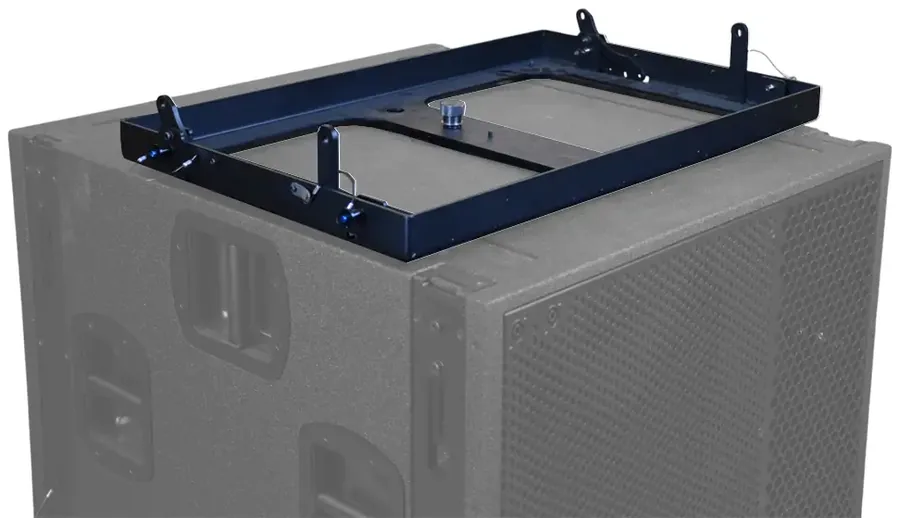

| TECHNICAL DATA Frequency band of use (± 10 dB) 25 Hz - 110 Hz SPL max at 1m 141 dB SPL (1) Nominal directionality (H° x V°) Omnidirectional Nominal impedance 8 ohms Transducers Acoustic load Amplification channels and sections 1 x 21'' (4.5" voice coil) Neodymium Hybrid bandpass with profiled vents 1 channel, mono-amplified Maximum number of speakers per DA8/ DA12 amplifier DA8: 4x UM121 DA12: 8x UM121 Dimensions H,W,D (mm) Weight (kg) Connectors IP 613 x 743 x 820 mm 70kg 2 x Speakon NL4MP (5) 43 UM121 The UM121 subwoofer features a 21-inch driver mounted in a hybrid load. The rear section is a bass-reflex configuration with a contoured port that optimises roundness at the low end of the spectrum, delivering an impressive physiological effect. The horn driver at the front, meanwhile, offers a gain in efficiency at the higher frequencies of the bandwidth, allowing for greater dynamics and impact. The use of a 21-inch loudspeaker combined with the large output surface area of the horn ensures a high, even sound level. The UM121 has been designed to be used on the floor or suspended. Specific accessories enable it to be used above or alongside UM210 loudspeakers. Interaction between the UM121s or with the UM210 has been optimised: the result is uniform bass and compliance with the latest regulatory requirements for audience hearing protection. FESTIVALS CONCERTS CONCERT HALLS TV PANELS ACCESSORIES & OPTIONS UMTRUSS Truss for Uniline Max (hook) UMSTACK Lightweight stacking accessory - UM121 and UC118i compatible SC121 Weatherproof cover for 1x UM121 UM121D2 Transport trolley for 2x UM121 UM121SCH2 Weatherproof cover for UM121D2 trolley KR125 Set of 4 125 mm castors ELECTRONICS DA8 and DA12 amplifiers APG amplifier with DSP fixed or touring installation series UNIRACK Universal amplification solution TOURACK Universal amplification solution |
리깅 툴 · 액세서리1
UM121 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
기술자료10
제조사 공식 문서입니다. 종류별로 묶었습니다.
도면 · CAD · BIM3
제품 이미지1
- zip제품 이미지다운로드
