Performance and discretion
2-way passive, 10"
140 dB최대 SPL
66 Hz – 20 kHz대역폭
70° / 90° / 110°수평 커버리지
22 kg무게
CONSTANT CURVATURE LINE SOURCEL-VENTSDOSCPANFLEX
LIGHT
Flown even under the most stringent rigging conditions
ADJUSTABLE
4 horizontal directivities with PANFLEX™
SHARP
Clear low-frequency power with L-VENTS™
SCALABLE

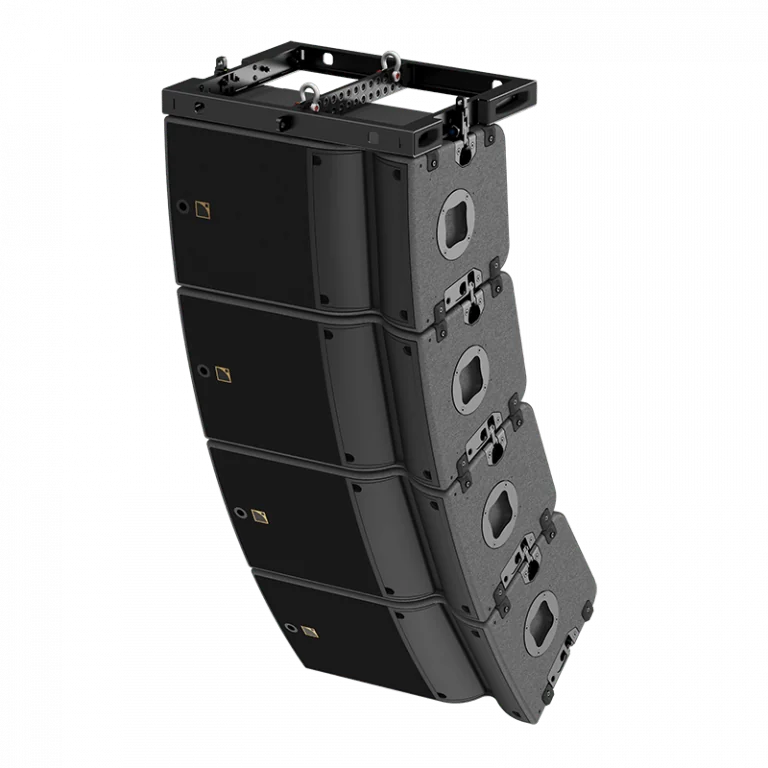

Scales to your needs, from high-output point source to versatile line source
| max spl | 140 dB |
|---|---|
| weight | 22 kg / 49 lb |
| bandwidth | 66 Hz- 20 KHz |
| horizontal coverage | H: 70° / 90° / 110° V: 10° |
| components product | LF : 1 x 10" HF : 1 x 2.5" |
| 구성 | 2-way passive constant curvature WST® 10° enclosure amplified by LA4X / LA8 / LA12X |
|---|---|
| 사용 대역 | 66 Hz - 20 kHz ([A10]) |
| 최대 음압 | 140 dB ([A10]) |
| 공칭 지향각 | Enclosure: 10° L-Fins : 110° / 70° symmetric ; 90° asymmetric |
| 드라이버 | LF: 1 × 10" cone drivers HF: 1 × 2.5" diaphragm compression drivers |
| 음향 부하 | LF: bass-reflex, L-Vents HF: DOSC waveguide; Panflex |
| 공칭 임피던스 | 8 Ω |
| 커넥터 | 2 × 4-point speakON |
|---|---|
| 리깅·취급 | flush-fitting 2-point rigging system 2 × handles 8 × corner stop 2 × ground runner 1 DIN580-compatible M8 threaded insert |
| 치수 | 581 mm ( 22.9 in) / 350 mm (13.8 in) / 367 mm (14.5 in) |
| 무게(본체) | 22 kg / 49 lb |
| 인클로저 | premium grade Baltic beech and birch plywood |
| 전면 | Coated steel grill Acoustically neutral 3D fabric |
| 리깅 부품 | High grade steel with anti-corrosion coating |
| 마감 | dark grey brown Pantone 426 C |
| IP 등급 | IP55 |
리깅 툴 · 액세서리4
A10 Focus 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
A10-BUMPFlying frame for vertical deployment of A10
A10-LIFTRigging element for horizontal deployment of A10
A10-RIGBARRigging bar and pullback for A10
A10-UiU-bracket for A10i기술자료11
