eXpanding horizons
2-way passive, 8"
129 dB ([X8i preset])최대 SPL
43 Hz – 20 kHz ([X8i_40 preset])대역폭
90°수평 커버리지
11 kg무게
POINT SOURCECOAXIALL-VENTS
CONCERT SOUND
L-Acoustics sonic signature, with concert sound output and bandwidth
CONSISTENT
Smooth off-axis response with COAXIAL technology
SHARP
Clear low-frequency power with L-VENTS™
INTEGRATE
Streamline install-focus design expanding integration possibilities
| max spl | 129 dB ([X8i preset]) |
|---|---|
| weight | 11 kg / 24 lb |
| bandwidth | 43 Hz- 20 KHz ([X8i_40 preset]) |
| horizontal coverage | H: 90° V: 90° |
| components product | LF : 1 x 8" HF : 1 x 1.5" |
| 구성 | 2-way passive coaxial enclosure amplified by LA7.16i / LA2Xi / LA4X / LA12X |
|---|---|
| 사용 대역 | 67 Hz - 20 kHz ([X8i preset]) 43 Hz - 20 kHz ([X8i_40 preset]) |
| 최대 음압 | 129 dB ([X8i preset]) 123 dB ([X8i_40 preset]) |
| 공칭 지향각 | 90° axisymmetric |
| 모니터 각도 | 35°/55° |
| 드라이버 | LF: 1 × 8" cone driver HF: 1 × 1.5" diaphragm compression driver, neodymium |
| 음향 부하 | LF: bass-reflex, L-Vents HF: conical waveguide |
| 공칭 임피던스 | 8 Ω |
| 커넥터 | IN: 1 × 2-point terminal block LINK: 1 × 2-point terminal block |
|---|---|
| 리깅·취급 | 8 M6 inserts |
| 치수 | 240 mm (9.4 in) / 480 mm (16.9 in) / 217 mm (8.5 in) |
| 무게(본체) | 11 kg / 24 lb |
| 인클로저 | premium grade Baltic beech and birch plywood |
| 전면 | Coated steel grill Acoustically neutral 3D fabric |
| 마감 | dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order |
| IP 등급 | IP55 |
리깅 툴 · 액세서리18
X8i 시스템용으로 제조사가 지정한 액세서리입니다. 각 항목을 누르면 도면과 자료가 있습니다.
CEILING-PENDANTRigging accessory for ceiling hung pendant loudspeaker
GROUNDGround-mounting accessory
GROUND35Ground-mounting accessory for 35° site angle
GROUND55Ground-mounting accessory for 55° site angle
PANAdjustable pan accessory +/-45°
PANx2Adjustable pan accessory kit +/-45°
POLEPole-mount adapter
SPCON2-point speakON adaptor for terminal blocks
TILTAdjustable tilt accessory from 0° to 40°
TILT-SUPPORTSupport plate for TILT/PAN/WALL accessories
TILT15Fixed tilt accessory 15°
TILT40Fixed tilt accessory 40°
TILT5Fixed tilt accessory 5°
VBARRigging accessory for vertically-oriented loudspeaker
WALLWall-mounting accessory
WALLx2Wall-mounting kit
X8i-HBARRigging accessory for horizontally-oriented X8i

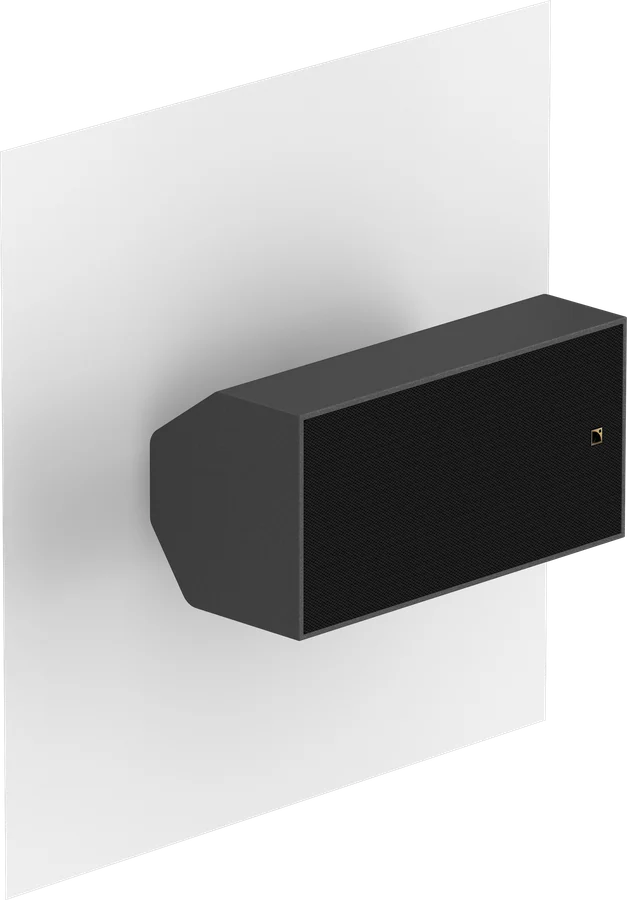

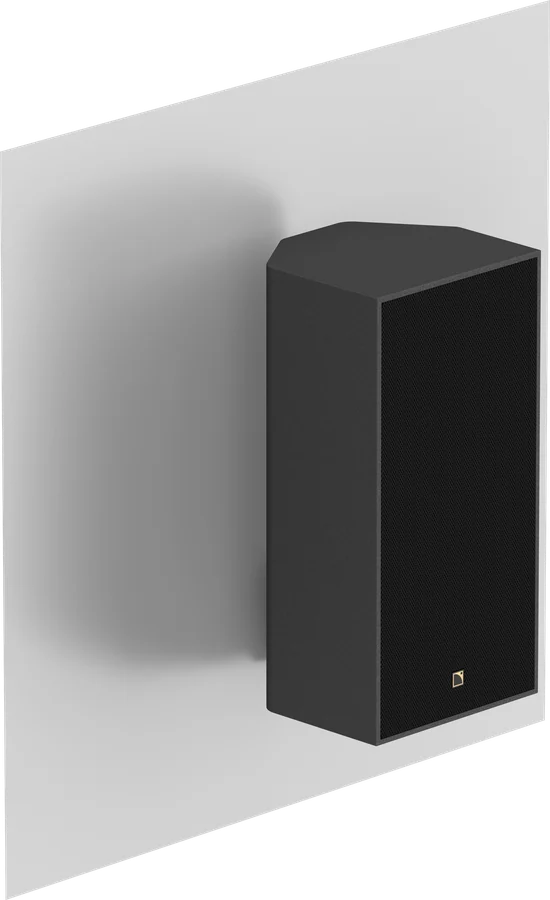

X8i-onCWOn-wall or on-ceiling mounting accessory with silent blocks for X8i기술자료8
제조사 공식 문서입니다. 종류별로 묶었습니다.
사양서 · 제품 정보4
메뉴얼 · 가이드1
- pdfX8i - Owner's Manual8.34 MB · 01/11/2024다운로드
도면 · CAD · BIM1
- zipX8i - CAD Files2.80 MB · 01/11/2024다운로드
제품 이미지1
- zipX8i - Product Visuals82.89 MB · 01/11/2024다운로드
인증 · 적합성 선언1
- pdfX8i - Declaration of Conformity43.37 KB · 01/11/2024다운로드
