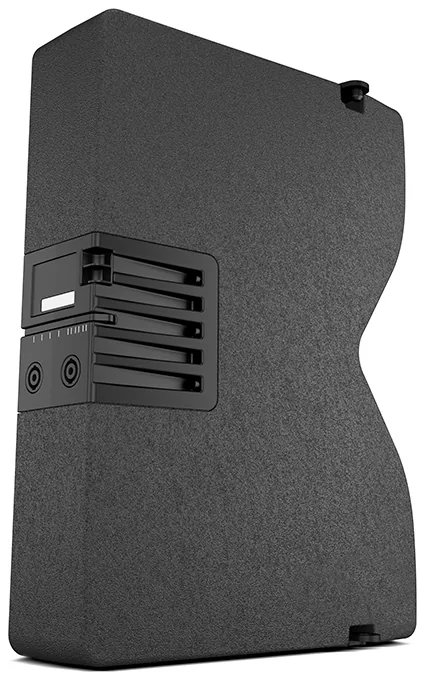

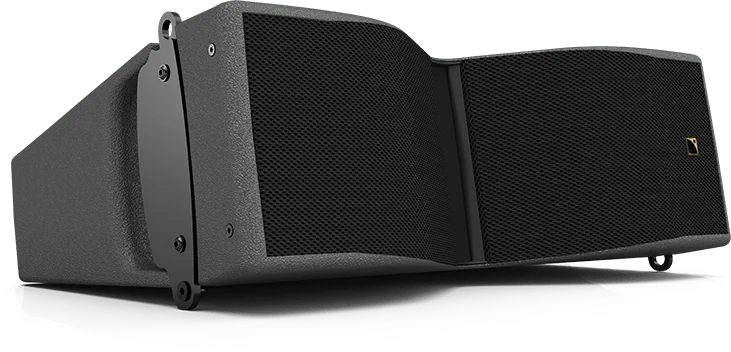

KIVA II

Power is beautiful

2-way passive, dual 6.5"

138 dB최대 SPL

70 Hz – 20 kHz대역폭

100°수평 커버리지

14 kg무게

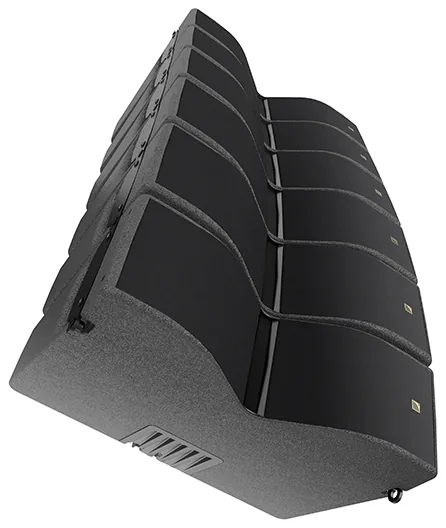

VARIABLE CURVATURE LINE SOURCEDOSCL-FINS

LIGHT

Flown even under the most stringent rigging conditions

COMPACT

Minimalist dimensions for easy integration

PRECISE

Clear vocals and smooth horizontal polar pattern with L-FINS

DENSITY

16 ohms for maximized enclosure density per amplified controller

음향 사양
구성	2-way passive WST® enclosure amplified by LA2Xi / LA4X / LA8 / LA12X
사용 대역	70 Hz - 20 kHz ([KIVA II])
최대 음압	138 dB ([KIVA II]) with LA2Xi (bridge mode) / LA4X / LA8 / LA12X 133 dB ([KIVA II]) with LA2Xi
공칭 지향각	horizontal: 100° symmetrical vertical: 15° (single), depending on the number of elements and array curvature
드라이버	LF: 2 × 6.5" neodymium cone driver HF: 1 × 1.75" neodymium diaphragm compression driver
음향 부하	LF: bass-reflex HF: DOSC waveguide, L-Fins
공칭 임피던스	16 Ω

기구 사양
커넥터	2 × 4-point speakON
리깅·취급	flush-fitting 3-point rigging system inter-enclosure angles: 0°, 1°, 2°, 3°, 4°, 5°, 7.5°, 10°, 12.5° or 15° 2 handles
치수	525 mm ( 20.5 in) / 202 mm (8 in) / 357 mm (14 in)
무게(본체)	14 kg / 31 lb
인클로저	composite sandwich structure
전면	composite grill with anti-corrosion coating acoustically neutral 3D fabric
리깅 부품	high grade steel
마감	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP 등급	IP55
