SB10r

The power of bass. The luxury of space.

Ultra-compact subwoofer, 10"

124 dB최대 SPL

32 Hz –대역폭

standard수평 커버리지

13 kg무게

L-VENTS

POWERFUL

High-power handling for maximized output and bandwidth for its size

COMPACT

Fits the most stringent dimension restrictions

SHARP

Clear low-frequency power with L-VENTS™

ELEGANT

Designed to melt into any venue decor

음향 사양
구성	Ultra-compact subwoofer: 1 x 10" (installation version) amplified by LA2Xi / LA4X / LA12X
저역 한계	25 Hz ([SB10_60]) 27 Hz ([SB10_100]) 29 Hz ([SB10_200])
최대 음압	119 dB ([SB10_60]) 122 dB ([SB10_100]) / 120 dB with LA2Xi 124 dB ([SB10_200]) / 122 dB with LA2Xi
공칭 지향각	standard
드라이버	1 × 10" cone driver
음향 부하	bass-reflex
공칭 임피던스	8 Ω

기구 사양
커넥터	1 × 4-point terminal block with push-in connection

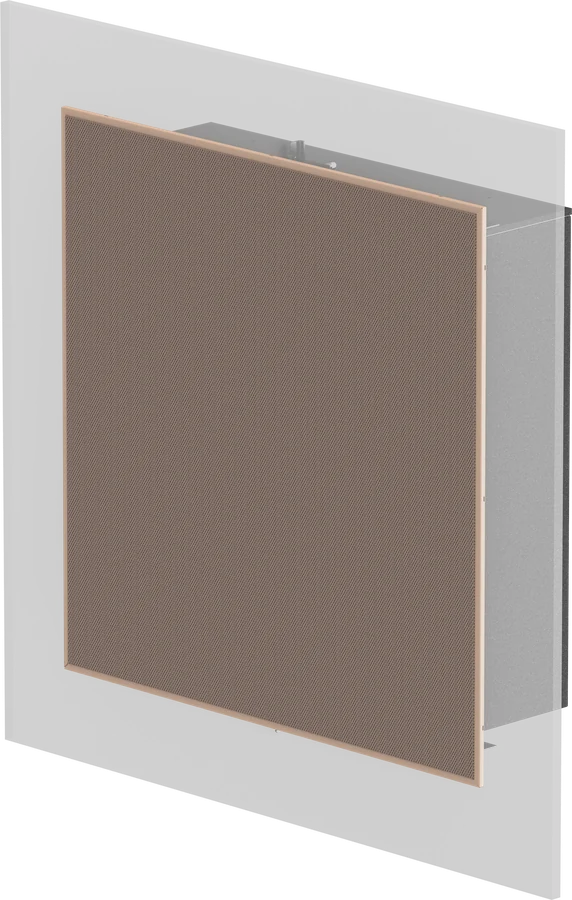

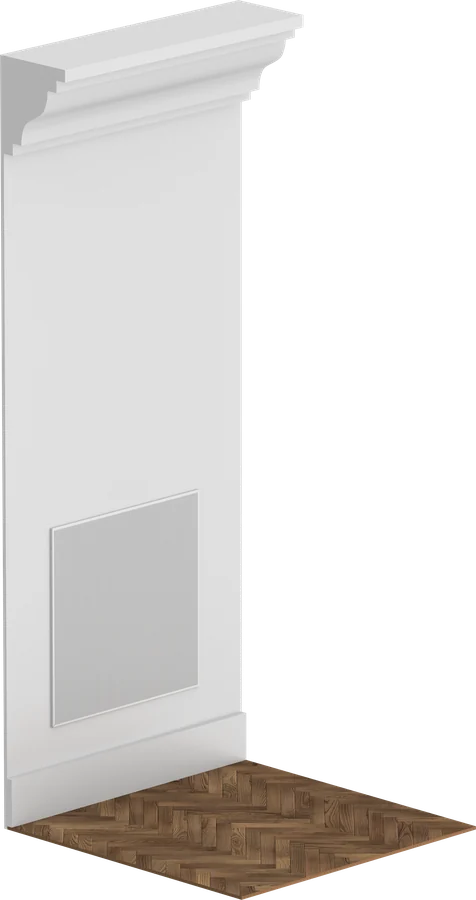

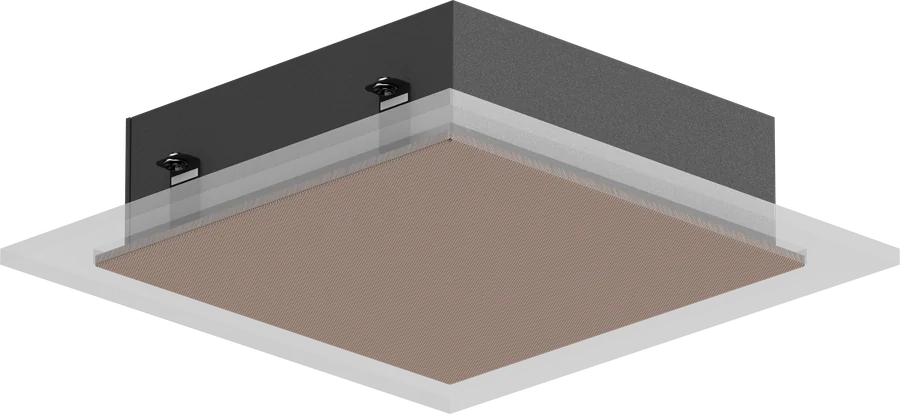

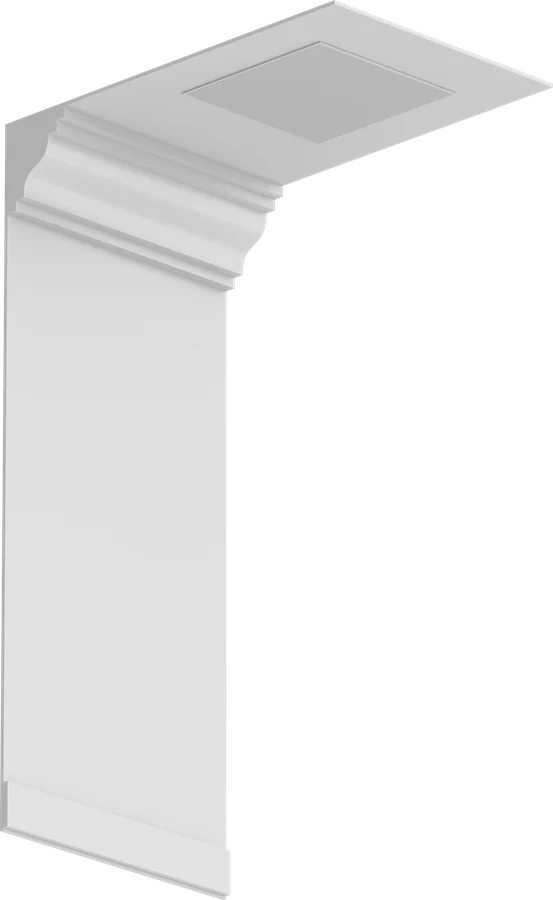

리깅·취급	SB10r inWall includes all elements for integration in plain walls SB10r inCeiling includes all elements for integration in plain ceilings SB10r inTile includes all elements for integration in ceiling tiles (600 x 600 mm / 2 x 2 ft)
치수	547 mm (21.5 in) / 539 mm (21.2 in) / 169 mm (16.7 in)
무게(본체)	SB10r inWall: 17 kg / 37,9 lb SB10r inCeiling: 17,4 kg / 38,7 lb SB10r inTile: 14,9 kg / 33,2 lb
인클로저	premium grade Baltic birch plywood
전면	coated steel grill acoustically neutral 3D fabric
마감	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP 등급	IP55
