SB6r

Ultra-shallow subwoofer, dual 6.5"

115 dB최대 SPL

32 Hz –대역폭

standard수평 커버리지

7,5 kg무게

L-VENTS

ULTRA-SHALLOW

Less than 10 cm / 4 in to fit into standard wall constructions

POWERFUL

Amongst the most powerful ultracompact subwoofer on the market

SHARP

Clear low-frequency power with L-VENTS™

ELEGANT

Designed to melt into any venue decor

음향 사양
구성	Ultra-shallow subwoofer: 2 x 6.5" (installation version) amplified by LA2Xi / LA4X / LA7.16i
저역 한계	29 Hz ([SB6_60]) 29 Hz ([SB6_100]) 32 Hz ([SB6_200])
최대 음압	110 dB ([SB6_60]) 111 dB ([SB6_100]) 115 dB ([SB6_200])
공칭 지향각	standard
드라이버	2 × 6.5" cone driver
음향 부하	bass-reflex
공칭 임피던스	4 Ω

기구 사양
커넥터	1 × 4-point terminal block with push-in connection

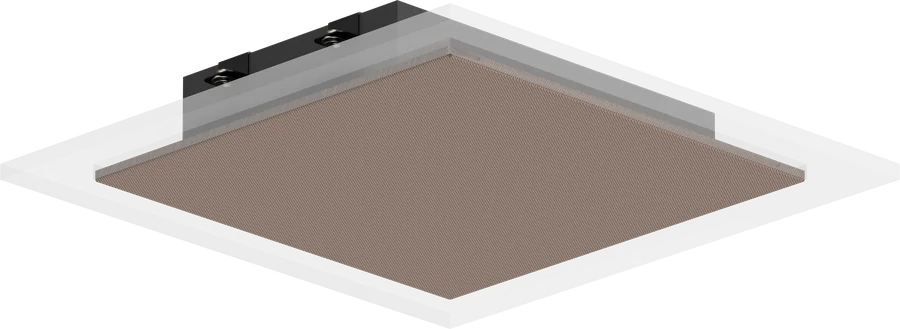

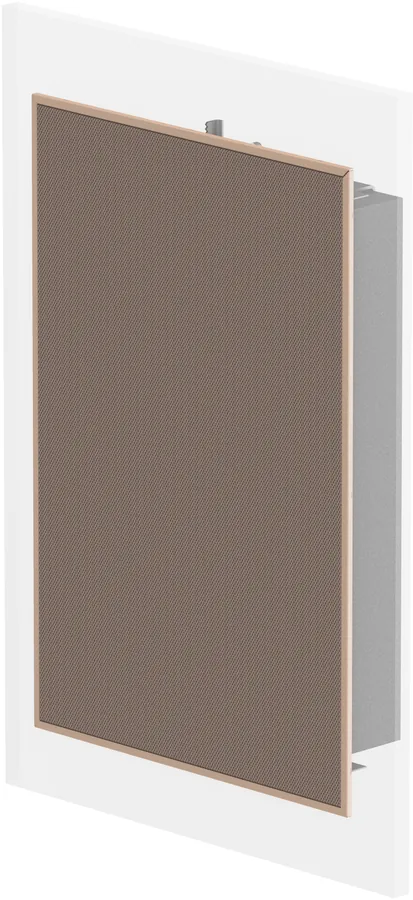

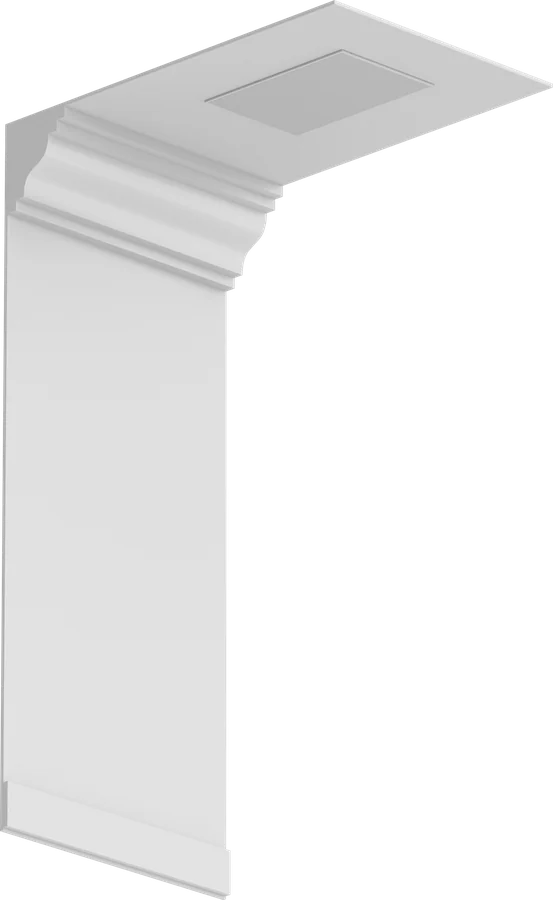

리깅·취급	SB6r inWall includes all elements for integration in plain walls SB6r inCeiling includes all elements for integration in plain ceilings SB6r inTile includes all elements for integration in ceiling tiles (600 x 600 mm / 2 x 2 ft)
치수	360 mm (14.2 in) / 532 mm (30.9 in) / 99 mm (3.9 in)
무게(본체)	SB6r inWall: 10,6 kg / 23,8 lb SB6r inCeiling: 10,6 kg / 23,8 lb SB6r inTile: 9,8 kg / 22 lb
인클로저	premium grade Baltic beech and birch plywood
전면	coated steel grill acoustically neutral 3D fabric
마감	dark grey brown Pantone 426 C pure white RAL 9010 custom RAL code on special order
IP 등급	IP55
